Superspeed punching-- X-PUNCH Pro workstation

X-PUNCH Pro is a punching module customized according to product features, so it is not restricted to a concrete structure, but instead, it is a generic term of customized superspeed punching modules.

X-PUNCH Pro will unavoidably sacrifice product flexibility while laying the emphasis on efficiency, so it can’t adapt to all product requirements. Nevertheless, in terms of products of the same kind with similar structures, X-PUNCH Pro is still applicable to production requirements of products of all specifications, so it has incomparable flexibility, which is its enormous advantage.


Example 1

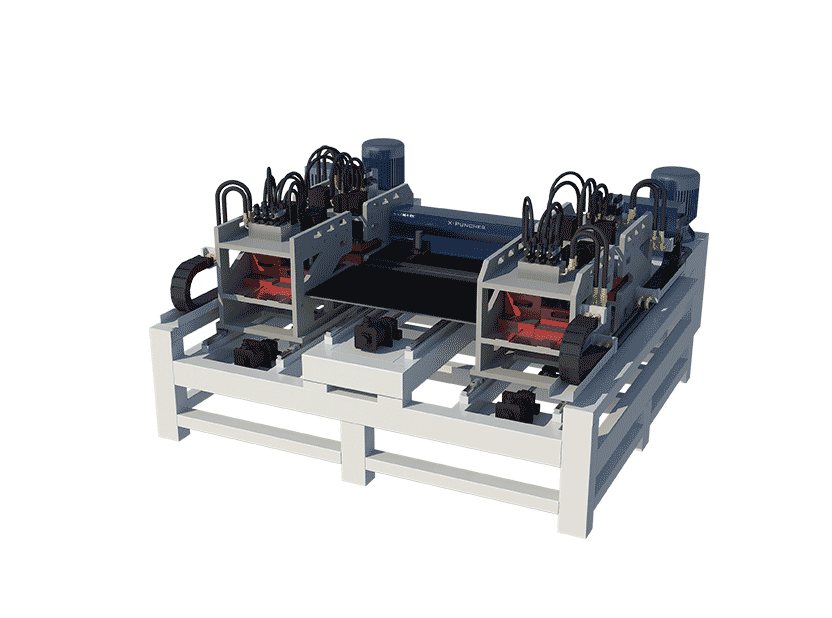

The figure shows hole position graph of left and right door panels of an elevator door in an elevator plant; it’s required that left and right door panels should be completed on the same X-PUNCH Pro high-speed punching workstation at left and right sides respectively; the punching work must adapt to width and height changes (all hole spacings will experience corresponding changes): it should adapt to change of door opening direction (center opening door, left opening door, right opening door, etc., each product has similar overall structure, but hole position details will be changed correspondingly); it should adapt to possible design changes of products in the foreseeable future (on a certain precondition); production takt should be within 10s. X-PUNCH Pro has successfully completed all tasks.

Example 2

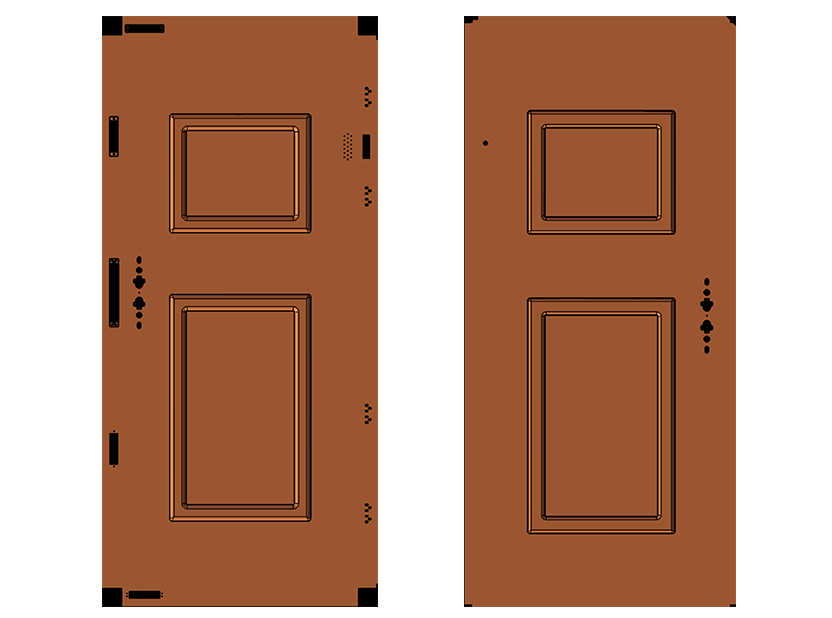

The figure shows hole position graph of front and back door panels from a security door manufacturer. It’s required that punching requirements for both front and back door panels should be simultaneously satisfied (hole position difference between front and back door panels is enormous); left opening door and right opening door should be simultaneously satisfied (all hole positions will present specular changes); follow-up possible design changes should be met (on a certain precondition); interactive production between front and back door panels is required; production takt shall not be longer than 20s, all of which have been successfully realized by X-PUNCH Pro.
